90° Socket Weld Elbow manufacturer & exporter


Home / Products / Socket Weld Fittings / 90° Socket Weld Elbow

We are engaged in manufacturing 45 Deg,90 Deg ,180 Deg Socket Weld Elbow, Designed in line with international quality standards, our range is categorized into SR (Short Radius) elbows and LR (Long Radius) elbows. The SR (Short Radius) elbow (with a center-to-face dimension of 1.0 X diameter) is mainly used in tight areas where clearance is required. Our LR (Long Radius) elbows have center-to-face dimension of 1.5 X diameter and used when space is available and flow is more critical.

90° Socket Weld Elbow

90° Socket Weld Elbow Manufacturer & Exporter

SOCKET WELD FITTINGS GENERAL
A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a
valve, fitting or flange.
In contrast to buttweld fittings, socket weld fittings are mainly used for small pipe diameters (Small
Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

Size : 1/2"NB TO 4"NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS

Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.

MATERIALS :
Stainless Steel 45 Deg. Forged Elbow – SS 45 Deg. Forged Elbow
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Stainless Steel 45 Deg. Forged Elbow - Duplex SS 45 Deg. Forged Elbow
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel 45 Deg. Forged Elbow – CS 45 Deg. Forged Elbow
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel 45 Deg. Forged Elbow  – LTCS 45 Deg. Forged Elbow
A350 LF3/A350 LF2

Alloy Steel 45 Deg. Forged Elbow – AS 45 Deg. Forged Elbow
ASTM / ASME A/SA 182  F1/F5/F9/F11/F22/F91

Nickel Alloy 45 Deg. Forged Elbow  :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 Forged Elbow )
UNS 2200 (NICKEL 200 Forged Elbow ),
UNS 2201 (NICKEL 201 Forged Elbow ),
UNS 4400 (MONEL 400 Forged Elbow ),
UNS 8020 (ALLOY 20 Forged Elbow )
UNS 8825 INCONEL 825 Forged Elbow ),
UNS 6600 (INCONEL 600 Forged Elbow ),
UNS 6601 (INCONEL 601 Forged Elbow),
UNS 6625 (INCONEL 625 Forged Elbow),

Copper Alloy 45 Deg. Forged Elbow
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel Forged Elbow
C 71500 (CU -NI- 70/30) – Copper Nickel Forged Elbow
UNS NO. C 92200, UNS NO. C 83600, UNS NO.  UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200

VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Enquiry

Dimensions

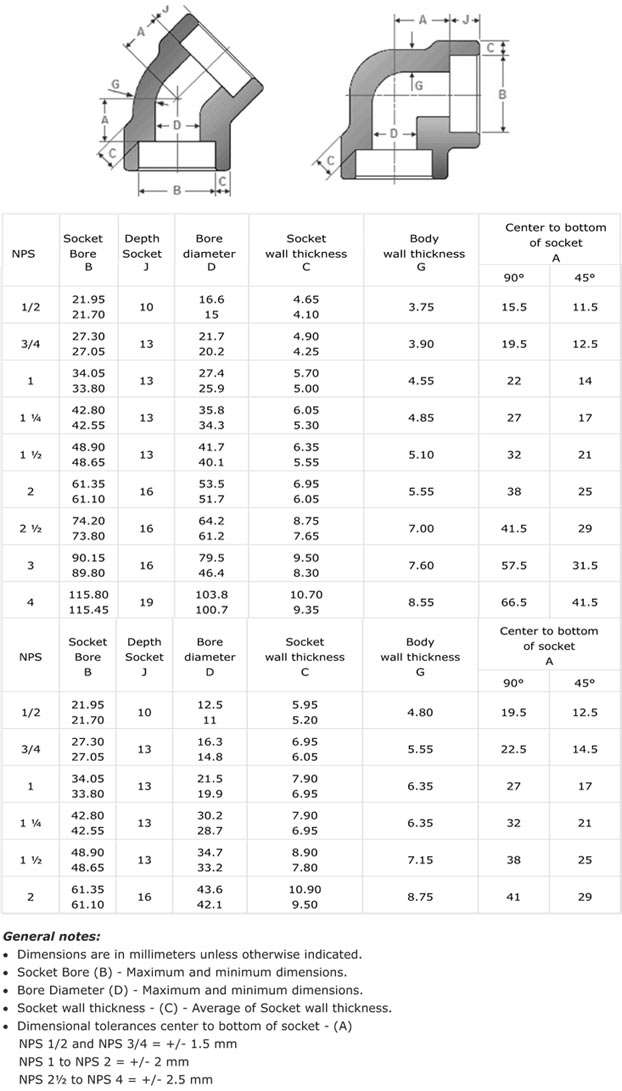

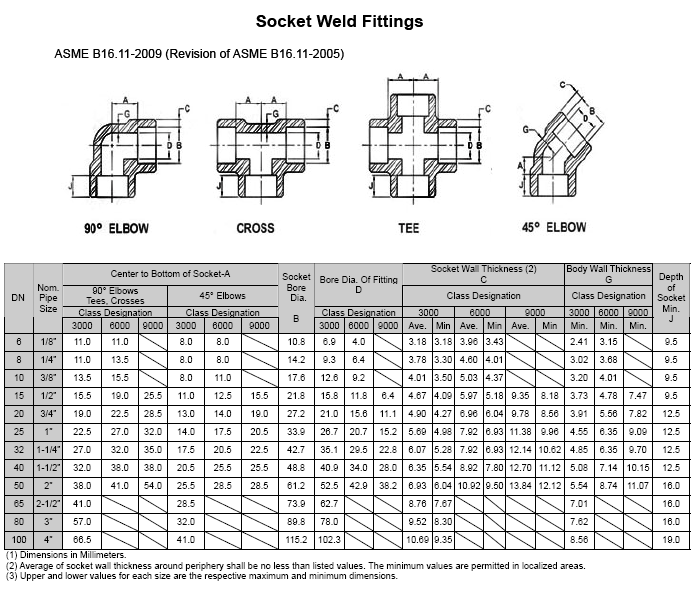

Dimensions Socket weld Elbows 90°/45°-NPS 1/2 - 4 according to ASME B16.11

90degree-socketweld-elbow-fittings

Socket weld 90° Elbow
