BS 10 Table E Flange
Dimensions

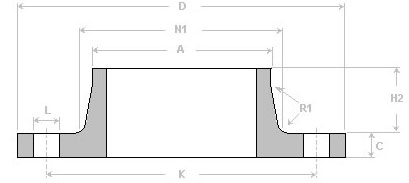

Dimensions & Approximate Masses of BS 10 Table E Flange
BRITISH BS 10 TABLE E FLANGE SPECIFICATION
| N.B. SIZE |
D |
K |
L |
A |
C |
N1 |
N2 |
B |
H1 |
H2 |
R1 |
R2 |
HOLES |
| IN |
mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
| ½" |
15 |
95.3 |
66.8 |
14.5 |
21.3 |
6.4 |
27.0 |
33.3 |
22.4 |
9.5 |
22.2 |
6.4 |
1.6 |
4 |
| ¾" |
20 |
101.6 |
73.2 |
14.5 |
26.7 |
6.4 |
33.3 |
38.1 |
27.7 |
11.1 |
22.2 |
6.4 |
1.6 |
4 |
| 1" |
25 |
114.3 |
82.6 |
14.5 |
33.5 |
7.2 |
42.9 |
47.6 |
34.6 |
11.1 |
22.2 |
6.4 |
1.6 |
4 |
| 1 ¼" |
32 |
120.7 |
87.4 |
14.5 |
42.2 |
7.9 |
49.2 |
55.6 |
43.2 |
11.1 |
25.4 |
6.4 |
1.6 |
4 |
| 1 ½" |
40 |
133.4 |
98.6 |
14.5 |
48.3 |
8.7 |
58.7 |
61.9 |
49.5 |
12.7 |
28.6 |
6.4 |
1.6 |
4 |
| 2" |
50 |
152.4 |
114.3 |
17.5 |
60.5 |
9.5 |
69.9 |
74.6 |
62.0 |
12.7 |
28.6 |
6.4 |
1.6 |
4 |
| 2 ½" |
65 |
165.1 |
127.0 |
17.5 |
73.2 |
10.3 |
82.6 |
90.5 |
74.7 |
15.9 |
31.8 |
6.4 |
1.6 |
4 |
| 3" |
80 |
184.2 |
146.1 |
17.5 |
88.9 |
11.1 |
101.6 |
106.4 |
90.7 |
15.9 |
34.9 |
6.4 |
1.6 |
4 |
| 3 ½" |
88 |
203.2 |
165.1 |
17.5 |
101.6 |
11.9 |
114.3 |
119.1 |
103.4 |
17.5 |
34.9 |
6.4 |
1.6 |
4 |
| 4" |
100 |
215.9 |
177.8 |
17.5 |
114.3 |
12.7 |
130.2 |
133.4 |
116.1 |
19.1 |
41.3 |
9.5 |
3.2 |
4 |
| 5" |
125 |
254.0 |
209.6 |
17.5 |
141.2 |
14.3 |
152.4 |
160.3 |
143.8 |
19.1 |
44.5 |
9.5 |
3.2 |
8 |
| 6" |
150 |
279.4 |
235.0 |
17.5 |
168.4 |
17.5 |
184.2 |
185.7 |
171.7 |
19.1 |
47.6 |
9.5 |
3.2 |
8 |
| 8" |
200 |
336.6 |
292.1 |
17.5 |
219.2 |
19.1 |
241.3 |
241.3 |
221.5 |
22.2 |
50.8 |
9.5 |
3.2 |
8 |
| 10" |
250 |
406.4 |
355.6 |
22.2 |
273.1 |
22.2 |
292.1 |
298.5 |
276.4 |
27.0 |
63.5 |
9.5 |
3.2 |
8 |
| 12" |
300 |
457.2 |
406.4 |
22.2 |
323.9 |
25.4 |
342.9 |
349.3 |
325.9 |
28.6 |
69.9 |
9.5 |
4.8 |
12 |
| 14" |
350 |
527.1 |
469.9 |
25.4 |
355.6 |
28.6 |
406.4 |
- |
359.2 |
- |
73.0 |
9.5 |
4.8 |
12 |
| 16" |
400 |
577.9 |
520.7 |
25.4 |
406.4 |
31.8 |
431.8 |
- |
410.5 |
- |
- |
- |
- |
12 |
| 18" |
450 |
641.4 |
584.2 |
25.4 |
457.2 |
34.9 |
- |
- |
461.8 |
- |
- |
- |
- |
12 |
| 20" |
500 |
704.9 |
641.4 |
25.4 |
508.0 |
38.1 |
- |
- |
513.1 |
- |
- |
- |
- |
16 |
| 24" |
600 |
825.5 |
755.7 |
28.7 |
609.6 |
47.6 |
- |
- |
616.0 |
- |
- |
- |
- |
16 |
