Home / Products / Flanges / Backing Ring Flange
We Are A Manufacturer And Exporter Of Superior Quality Of Backing Ring Flange. These Are Playing An Active Role In Diverse Industrial Applications. These Steel Flanges Are Available In Various Shapes And Pressure Rating To Meet The Specific Requirements Of Various Industries. Made Up Of Corrosion Free Material, These Mild Steel Flanges Are Shock Proof. Designed With Utmost Precision, Our Mild Steel Flanges Are Used For Piping Pressure In Industries Like Food, Chemical And Pharmaceuticals. These Flanges Are Available As Per The Given Specification Of Clients.
Backing Ring Flange
BACKING RING FLANGE WITH HOT DIP GALVANIZED

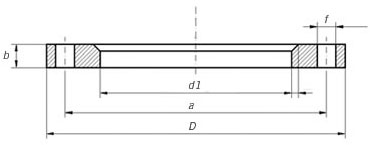

Dimensions
SABS 1123 T1000/3 BACKING RING FLANGE
BS T/D BACKING RING FLANGE
Dimensions & Masses of Backing Ring Flange for HDPE
| SABS 1123 T1000/3 BACKING RING FLANGE WITH HOT DIPPED GALVANIZED FOR HDPE PIPE |
Pipe OD |
ID |
OD |
Thickness |
PCD |
No Holes |
Hole ID |
Weight |
Radius |
mm |
mm |
mm |
mm |
mm |
|
mm |
KG |
mm |
40 |
|
140 |
10 |
100 |
4 |
18 |
|
|
50 |
|
150 |
10 |
110 |
4 |
18 |
|
|
63 |
|
165 |
12 |
125 |
4 |
18 |
|
|
75 |
|
185 |
12 |
145 |
4 |
18 |
|
|
90 |
|
200 |
12 |
160 |
8 |
18 |
|
|
110 |
|
220 |
12 |
180 |
8 |
18 |
|
|
125 |
|
220 |
12 |
180 |
8 |
18 |
|
|
140 |
|
250 |
14 |
210 |
8 |
18 |
|
|
160 |
|
285 |
16 |
240 |
8 |
22 |
|
|
180 |
|
285 |
16 |
240 |
8 |
22 |
|
|
200 |
|
340 |
18 |
295 |
8 |
22 |
|
|
225 |
|
340 |
18 |
295 |
8 |
22 |
|
|
250 |
|
395 |
18 |
350 |
12 |
22 |
|
|
280 |
|
395 |
20 |
350 |
12 |
22 |
|
|
315 |
|
445 |
22 |
400 |
12 |
22 |
|
|
355 |
|
505 |
25 |
460 |
16 |
22 |
|
|
400 |
|
565 |
25 |
515 |
16 |
26 |
|
|
450 |
|
615 |
30 |
565 |
20 |
26 |
|
|
500 |
|
670 |
30 |
620 |
20 |
26 |
|
|
560 |
|
730 |
35 |
675 |
20 |
26 |
|
|
630 |
|
835 |
36 |
780 |
20 |
26 |
|
|
| BS T/D BACKING RING FLANGE WITH HOT DIPPD GALVANIZED FOR HDPE PIPE |
Pipe OD |
ID |
OD |
Thickness |
PCD |
No Holes |
Hole ID |
Weight |
Radius |
mm |
mm |
mm |
mm |
mm |
|
mm |
KG |
mm |
40 |
|
120 |
6 |
87.3 |
4 |
14 |
|
|
50 |
|
133.4 |
6 |
98.4 |
4 |
14 |
|
|
63 |
|
152.4 |
8 |
114.3 |
4 |
18 |
|
|
75 |
|
165.1 |
8 |
127 |
4 |
18 |
|
|
90 |
|
184.1 |
10 |
146 |
4 |
18 |
|
|
110 |
|
215.9 |
10 |
177.8 |
4 |
18 |
|
|
125 |
|
215.9 |
10 |
177.8 |
4 |
18 |
|
|
125 PVC |
|
250 |
13 |
209.6 |
8 |
18 |
|
|
140 |
|
250 |
13 |
209.6 |
8 |
18 |
|
|
160 |
|
279.4 |
13 |
235 |
8 |
18 |
|
|
180 |
|
279.4 |
13 |
235 |
8 |
18 |
|
|
200 |
|
336.6 |
13 |
292.1 |
8 |
18 |
|
|
225 |
|
336.6 |
13 |
292.1 |
8 |
18 |
|
|
250 |
|
406.4 |
16 |
355.6 |
8 |
22 |
|
|
280 |
|
406.4 |
16 |
355.6 |
8 |
22 |
|
|
315 |
|
457.2 |
20 |
406.4 |
12 |
22 |
|
|
355 |
|
527.1 |
22 |
469.9 |
12 |
26 |
|
|
400 |
|
577.9 |
22 |
520.7 |
12 |
26 |
|
|
450 |
|
641.4 |
25 |
584.2 |
12 |
26 |
|
|
500 |
|
705 |
29 |
641.4 |
16 |
26 |
|
|
560 |
|
825.5 |
30 |
755.7 |
16 |
26 |
|
|
630 |
|
825.5 |
32 |
755.7 |
16 |
26 |
|
|
