We offer blind flanges that are mostly used for closing the end of a pipe. Manufactured from finest quality of inconel, our range of blind flanges are durable, corrosion and rust resistant and easy to install. These blind flanges (plate type) can be used to close the ends of pipes, valves, pressure vessel openings and other channels, where one end needs to be blanked off.
Blind Flange
Dimensions

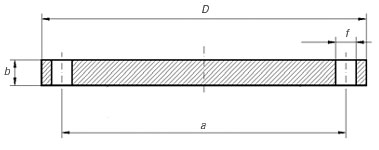

Dimensions & Masses of UNI 6092 PN10 Blind Flange
| ITALIAN STANDARDS UNI 6092 BLIND FLANGE PN 10 |
| Rated Diameter |
a |
b |
D |
f |
Number of holes |
Threading of the screws |
Weight* in Kg |
| 15 |
65 |
14 |
95 |
14 |
4 |
M 12 |
0,71 |
| 20 |
75 |
16 |
105 |
14 |
4 |
M 12 |
1,01 |
| 25 |
85 |
16 |
115 |
14 |
4 |
M 12 |
1,22 |
| 32 |
100 |
16 |
140 |
18 |
4 |
M 16 |
1,80 |
| 40 |
110 |
16 |
150 |
18 |
4 |
M 16 |
2,09 |
| 50 |
125 |
18 |
165 |
18 |
4 |
M 16 |
2,87 |
| 65 |
145 |
18 |
185 |
18 |
4 |
M 16 |
3,65 |
| 80 |
160 |
20 |
200 |
18 |
4 |
M 16 |
4,61 |
| 100 |
180 |
20 |
220 |
18 |
8 |
M 16 |
5,65 |
| 125 |
210 |
22 |
250 |
18 |
8 |
M 16 |
8,12 |
| 150 |
240 |
22 |
285 |
22 |
8 |
M 20 |
10,5 |
| 175 |
270 |
24 |
315 |
22 |
8 |
M 20 |
14,1 |
| 200 |
295 |
24 |
340 |
22 |
8 |
M 20 |
16,5 |
| 250 |
350 |
26 |
395 |
22 |
12 |
M 20 |
24,1 |
| 300 |
400 |
26 |
445 |
22 |
12 |
M 20 |
30,8 |
| 350 |
460 |
26 |
505 |
22 |
16 |
M 20 |
39,6 |
| 400 |
515 |
26 |
565 |
25 |
16 |
M 22 |
49,6 |
| 450 |
565 |
26 |
615 |
25 |
20 |
M 22 |
58,6 |
| 500 |
620 |
28 |
670 |
25 |
20 |
M 22 |
75,3 |
| * |
The weight is approximate and calculated on base 7.85 Kg/dm3 |
