We are regular suppliers from China for Threaded Flange
|
|
Home / Products / Flanges / Threaded Flange
We supply a quality range of Threaded Flanges to our valuable clients at competitive market prices. These flanges, acknowledged for their accurate and smooth performance, are extensively used in industries like petrochemical, chemical, petroleum, etc. Our instruments, manufactured using superior quality raw materials, are preferred for their better operational life and high tensile strength.
Threaded Flange

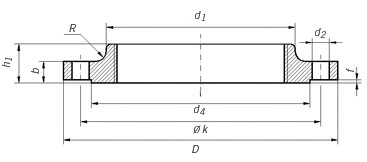

Dimensions
Dimensions & Masses of UNI 2253 PN6 Threaded Flange
| ITALIAN STANDARDS UNI 2253 THREADED FLANGE PN 6 |
| |
|
Flange |
Neck |
Raised face |
Screws |
Weight
(7,85 Kg/dm3) |
Rated
Diameter |
d1 |
Thread |
D |
b |
k |
h1 |
d3 |
d4 |
f |
Number |
Thread |
d2 |
Kg |
| 15 |
21,3 |
R 1/2 |
80 |
12 |
55 |
20 |
30 |
40 |
2 |
4 |
M 10 |
11 |
0,373 |
| 20 |
26,9 |
R 3/4 |
90 |
14 |
65 |
24 |
40 |
50 |
2 |
4 |
M 10 |
11 |
0,59 |
| 25 |
33,7 |
R 1 |
100 |
14 |
75 |
24 |
50 |
60 |
2 |
4 |
M 10 |
11 |
0,743 |
| 32 |
42,4 |
R 1 1/4 |
120 |
14 |
90 |
26 |
60 |
70 |
2 |
4 |
M 12 |
14 |
1,05 |
| 40 |
48,3 |
R 1 1/2 |
130 |
14 |
100 |
26 |
70 |
80 |
3 |
4 |
M 12 |
14 |
1,2 |
| 50 |
60,3 |
R 2 |
140 |
14 |
110 |
28 |
80 |
90 |
3 |
4 |
M 12 |
14 |
1,37 |
| 65 |
76,1 |
R 2 1/2 |
160 |
14 |
130 |
32 |
100 |
110 |
3 |
4 |
M 12 |
14 |
1,92 |
| 80 |
88,9 |
R 3 |
190 |
16 |
150 |
34 |
110 |
128 |
3 |
4 |
M 16 |
18 |
2,82 |
| 100 |
114,3 |
R 4 |
210 |
16 |
170 |
38 |
130 |
148 |
3 |
4 |
M 16 |
18 |
3,19 |
| 125 |
139,7 |
R 5 |
240 |
18 |
200 |
40 |
160 |
178 |
3 |
8 |
M 16 |
18 |
4,47 |
| 150 |
165,1 |
R 6 |
265 |
18 |
225 |
44 |
185 |
202 |
3 |
8 |
M 16 |
18 |
5,3 |
