We are regular suppliers from China for EN 1092-1 TYPE 02 Flange
|
|
Home / Products / Flanges / EN 1092-1 TYPE 02 Flange
Our company offers a wide range of flanges like EN1092-1 PN16 TYPE02 Plate Flange,SO, WN, BL, SW,LJ etc., which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
EN 1092-1 TYPE 02 Flange

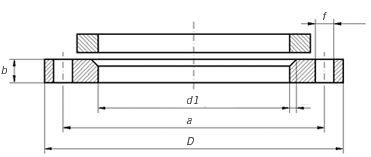

Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 02 Flange
| EN 1092-1 TYPE 02 PN10 LOOSE FLANGE |
| Rated Diameter |
Flange |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
k |
D |
b |
e |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
25 |
65 |
95 |
14 |
3 |
14 |
M12 |
4 |
0,654 |
| 20 |
31 |
75 |
105 |
16 |
4 |
14 |
M12 |
4 |
0,913 |
| 25 |
38 |
85 |
115 |
16 |
4 |
14 |
M12 |
4 |
1,081 |
| 32 |
47 |
100 |
140 |
18 |
5 |
18 |
M16 |
4 |
1,781 |
| 40 |
53 |
110 |
150 |
18 |
5 |
18 |
M16 |
4 |
2,035 |
| 50 |
65 |
125 |
165 |
20 |
5 |
18 |
M16 |
8 |
2,520 |
| 65 |
81 |
145 |
185 |
20 |
6 |
18 |
M16 |
8 |
3,050 |
| 80 |
94 |
160 |
200 |
20 |
6 |
18 |
M16 |
8 |
3,480 |
| 100 |
120 |
180 |
220 |
22 |
6 |
18 |
M16 |
8 |
4,200 |
| 125 |
145 |
210 |
250 |
22 |
6 |
18 |
M16 |
8 |
5,210 |
| 150 |
174 |
240 |
285 |
24 |
6 |
22 |
M20 |
8 |
6,890 |
| 200 |
226 |
295 |
340 |
24 |
6 |
22 |
M20 |
8 |
8.870 |
| 250 |
281 |
350 |
395 |
26 |
8 |
22 |
M20 |
12 |
11,200 |
| 300 |
333 |
400 |
445 |
26 |
8 |
22 |
M20 |
12 |
12,800 |
| 350 |
365 |
460 |
505 |
30 |
8 |
22 |
M20 |
16 |
19,400 |
| 400 |
416 |
515 |
565 |
32 |
8 |
26 |
M24 |
16 |
26,400 |
| 450 |
467 |
565 |
615 |
36 |
8 |
26 |
M24 |
20 |
32,200 |
| 500 |
519 |
620 |
670 |
38 |
8 |
26 |
M24 |
20 |
38,500 |
| 600 |
622 |
725 |
780 |
42 |
8 |
30 |
M27 |
20 |
52,200 |
| 700 |
721 |
840 |
895 |
50 |
8 |
30 |
M27 |
24 |
79,400 |
| 800 |
824 |
950 |
1015 |
56 |
8 |
33 |
M30 |
24 |
112,000 |
| 900 |
926 |
1050 |
1115 |
62 |
8 |
33 |
M30 |
28 |
135,000 |
| 1000 |
1028 |
1160 |
1230 |
70 |
8 |
36 |
M33 |
28 |
180,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN6 / P245GH / HEAT NUMBER |
| EN 1092-1 TYPE 02 PN16 LOOSE FLANGE |
| Rated Diameter |
Flange |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
k |
D |
b |
e |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
25 |
65 |
95 |
14 |
3 |
14 |
M12 |
4 |
0,655 |
| 20 |
31 |
75 |
105 |
16 |
4 |
14 |
M12 |
4 |
0,913 |
| 25 |
38 |
85 |
115 |
16 |
4 |
14 |
M12 |
4 |
1,081 |
| 32 |
47 |
100 |
140 |
18 |
5 |
18 |
M16 |
4 |
1,781 |
| 40 |
53 |
110 |
150 |
18 |
5 |
18 |
M16 |
4 |
2,035 |
| 50 |
65 |
125 |
165 |
20 |
5 |
18 |
M16 |
4 |
2,668 |
| 65 |
81 |
145 |
185 |
20 |
6 |
18 |
M16 |
4 |
3,241 |
| 80 |
94 |
160 |
200 |
20 |
6 |
18 |
M16 |
8 |
3,512 |
| 100 |
120 |
180 |
220 |
22 |
6 |
18 |
M16 |
8 |
4,247 |
| 125 |
145 |
210 |
250 |
22 |
6 |
18 |
M16 |
8 |
5,258 |
| 150 |
174 |
240 |
285 |
24 |
6 |
22 |
M20 |
8 |
6,945 |
| 200 |
226 |
295 |
340 |
26 |
6 |
22 |
M20 |
12 |
9,383 |
| 250 |
281 |
355 |
405 |
29 |
8 |
26 |
M24 |
12 |
13,717 |
| 300 |
333 |
410 |
460 |
32 |
8 |
26 |
M24 |
12 |
18,213 |
| 350 |
365 |
470 |
520 |
35 |
8 |
26 |
M24 |
16 |
27,184 |
| 400 |
416 |
525 |
580 |
38 |
8 |
30 |
M27 |
16 |
34,789 |
| 450 |
467 |
585 |
640 |
42 |
8 |
30 |
M27 |
20 |
44,793 |
| 500 |
519 |
650 |
715 |
46 |
8 |
33 |
M30 |
20 |
62,227 |
| 600 |
622 |
770 |
840 |
55 |
8 |
36 |
M33 |
20 |
98,983 |
| 700 |
721 |
840 |
910 |
63 |
8 |
36 |
M33 |
24 |
107,32 |
| 800 |
824 |
950 |
1025 |
74 |
8 |
39 |
M36 |
24 |
152,44 |
| 900 |
926 |
1050 |
1125 |
82 |
8 |
39 |
M36 |
28 |
184,25 |
| 1000 |
1030 |
1170 |
1255 |
90 |
8 |
42 |
M39 |
28 |
257,09 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN16 / P245GH / HEAT NUMBER |
