We are regular suppliers from China for EN 1092-1 TYPE 05 Flange
|
|
Home / Products / Flanges / EN 1092-1 TYPE 05 Flange
We are a trusted name engaged in offering high quality Dimensions Flange. The offered flange is manufactured using high grade raw material with anti-rust coating. This offered flange is passed through a series of tests on various parameters to ensure our clients a quality approved flange. Our offered flange is commonly available in bigger sizes but it can be customized as per the need of our clients. Our clients can avail this flange from us at reasonable prices.
EN 1092-1 TYPE 05 Flange
Dimensions

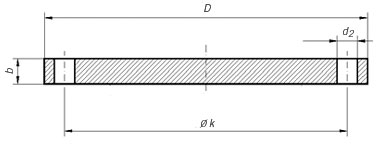

Dimensions & Approx Masses of EN 1092-1 TYPE 05 Flange
| EN 1092-1 TYPE 05 PN6 BLIND FLANGE |
| Diameter |
Flange |
Screws |
Weight
(7,85 Kg/dm3) |
| k |
D |
b |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
55 |
80 |
12 |
11 |
M10 |
4 |
0,438 |
| 20 |
65 |
90 |
14 |
11 |
M10 |
4 |
0,657 |
| 25 |
75 |
100 |
14 |
11 |
M10 |
4 |
0,821 |
| 32 |
90 |
120 |
14 |
14 |
M12 |
4 |
1,180 |
| 40 |
100 |
130 |
14 |
14 |
M12 |
4 |
1,390 |
| 50 |
110 |
140 |
14 |
14 |
M12 |
4 |
1,620 |
| 65 |
130 |
160 |
14 |
14 |
M12 |
4 |
2,140 |
| 80 |
150 |
190 |
16 |
18 |
M16 |
4 |
3,430 |
| 100 |
170 |
210 |
16 |
18 |
M16 |
4 |
4,220 |
| 125 |
200 |
240 |
18 |
18 |
M16 |
8 |
6,100 |
| 150 |
225 |
265 |
18 |
18 |
M16 |
8 |
7,510 |
| 200 |
280 |
320 |
20 |
18 |
M16 |
8 |
12,300 |
| 250 |
335 |
375 |
22 |
18 |
M16 |
12 |
18,500 |
| 300 |
395 |
440 |
22 |
22 |
M20 |
12 |
25,500 |
| 350 |
445 |
490 |
22 |
22 |
M20 |
12 |
31,800 |
| 400 |
495 |
540 |
22 |
22 |
M20 |
16 |
38,500 |
| 450 |
550 |
595 |
24 |
22 |
M20 |
16 |
51,200 |
| 500 |
600 |
645 |
24 |
22 |
M20 |
20 |
60,100 |
| 600 |
705 |
755 |
30 |
26 |
M24 |
20 |
103,000 |
| 700 |
810 |
860 |
40 |
26 |
M24 |
24 |
178,000 |
| 800 |
920 |
975 |
44 |
30 |
M27 |
24 |
252,000 |
| 900 |
1020 |
1075 |
48 |
30 |
M27 |
24 |
336,000 |
| 1000 |
1120 |
1175 |
52 |
30 |
M27 |
28 |
435,000 |
| 1200 |
1340 |
1405 |
60 |
33 |
M30 |
32 |
717,000 |
| 1400 |
1560 |
1630 |
68 |
36 |
M33 |
36 |
1.094,000 |
| 1600 |
1760 |
1830 |
76 |
36 |
M33 |
40 |
1.545,000 |
| 1800 |
1970 |
2045 |
84 |
39 |
M36 |
44 |
2.131,000 |
| 2000 |
2180 |
2265 |
92 |
42 |
M39 |
48 |
2.862,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 05 / DN100 / PN6 / P245GH / HEAT NUMBER |
| EN 1092-1 TYPE 05 PN10 BLIND FLANGE |
| Diameter |
Flange |
Screws |
Weight
(7,85 Kg/dm3) |
| k |
D |
b |
d2 |
Thread |
Bolt holes |
KG |
| 200 |
295 |
340 |
24 |
22 |
M20 |
8 |
16,500 |
| 250 |
350 |
395 |
26 |
22 |
M20 |
12 |
24,100 |
| 300 |
400 |
445 |
26 |
22 |
M20 |
12 |
30,800 |
| 350 |
460 |
505 |
26 |
22 |
M20 |
16 |
39,600 |
| 400 |
515 |
565 |
26 |
26 |
M24 |
16 |
49,400 |
| 450 |
565 |
615 |
28 |
26 |
M24 |
20 |
63,000 |
| 500 |
620 |
670 |
28 |
26 |
M24 |
20 |
75,200 |
| 600 |
725 |
780 |
34 |
30 |
M27 |
20 |
124,000 |
| 700 |
840 |
895 |
38 |
30 |
M27 |
24 |
183,000 |
| 800 |
950 |
1015 |
48 |
33 |
M30 |
24 |
297,000 |
| 900 |
1050 |
1115 |
50 |
33 |
M30 |
28 |
374,000 |
| 1000 |
1160 |
1230 |
54 |
36 |
M33 |
28 |
492,000 |
| 1200 |
1380 |
1455 |
66 |
39 |
M36 |
32 |
842,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 05 / DN100 / PN10 / P245GH / HEAT NUMBER |
| EN1092-1 TYPE05 PN16 BLIND FLANGE |
| Diameter |
Flange |
Screws |
Weight
(7,85 Kg/dm3) |
| k |
D |
b |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
65 |
95 |
16 |
14 |
M12 |
4 |
0,813 |
| 20 |
75 |
105 |
18 |
14 |
M12 |
4 |
1,140 |
| 25 |
85 |
115 |
18 |
14 |
M12 |
4 |
1,380 |
| 32 |
100 |
140 |
18 |
18 |
M16 |
4 |
2,030 |
| 40 |
110 |
150 |
18 |
18 |
M16 |
4 |
2,350 |
| 50 |
125 |
165 |
18 |
18 |
M16 |
4 |
2,880 |
| 65 |
145 |
185 |
18 |
18 |
M16 |
4 |
3,643 |
| 80 |
160 |
200 |
20 |
18 |
M16 |
8 |
4,610 |
| 100 |
180 |
220 |
20 |
18 |
M16 |
8 |
5,650 |
| 125 |
210 |
250 |
22 |
18 |
M16 |
8 |
8,130 |
| 150 |
240 |
285 |
22 |
22 |
M20 |
8 |
10,500 |
| 200 |
295 |
340 |
24 |
22 |
M20 |
12 |
16,200 |
| 250 |
355 |
405 |
26 |
26 |
M24 |
12 |
25,000 |
| 300 |
410 |
460 |
28 |
26 |
M24 |
12 |
35,100 |
| 350 |
470 |
520 |
30 |
26 |
M24 |
16 |
48,000 |
| 400 |
525 |
580 |
32 |
30 |
M27 |
16 |
63,500 |
| 450 |
585 |
640 |
40 |
30 |
M27 |
20 |
96,600 |
| 500 |
650 |
715 |
44 |
33 |
M30 |
20 |
133,000 |
| 600 |
770 |
840 |
54 |
36 |
M33 |
20 |
226,000 |
| 700 |
840 |
910 |
58 |
36 |
M33 |
24 |
285,000 |
| 800 |
950 |
1025 |
62 |
39 |
M36 |
24 |
388,000 |
| 900 |
1050 |
1125 |
64 |
39 |
M36 |
28 |
483,000 |
| 1000 |
1170 |
1255 |
68 |
42 |
M39 |
28 |
640,000 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 05 / DN100 / PN16 / P245GH / HEAT NUMBER |
