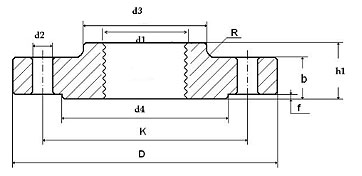

EN 1092-1 TYPE 13 Flange
Dimensions
Dimensions & Approx Masses of EN 1092-1 TYPE 13 Flange
| EN 1092-1 TYPE 13 PN6 THREADED FLANGE |
| Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
Thread |
k |
D |
b |
h1 |
d3 |
d4 |
f |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
21,3 |
R 1/2" |
55 |
80 |
12 |
20 |
30,0 |
40,0 |
2,0 |
11 |
M10 |
4 |
0,373 |
| 20 |
26,9 |
R 3/4" |
65 |
90 |
14 |
24 |
40,0 |
50,0 |
2,0 |
11 |
M10 |
4 |
0,584 |
| 25 |
33,7 |
R 1" |
75 |
100 |
14 |
24 |
50,0 |
60,0 |
2,0 |
11 |
M10 |
4 |
0,729 |
| 32 |
42,4 |
R 1-1/4" |
90 |
120 |
14 |
26 |
60,0 |
70,0 |
2,0 |
14 |
M12 |
4 |
1,040 |
| 40 |
48,3 |
R 1-1/2" |
100 |
130 |
14 |
26 |
70,0 |
80,0 |
3,0 |
14 |
M12 |
4 |
1,200 |
| 50 |
60,3 |
R 2" |
110 |
140 |
14 |
28 |
80,0 |
90,0 |
3,0 |
14 |
M12 |
4 |
1,340 |
| 65 |
76,1 |
R 2-1/2" |
130 |
160 |
14 |
32 |
100,0 |
110,0 |
3,0 |
14 |
M12 |
4 |
1,830 |
| 80 |
88,9 |
R 3" |
150 |
190 |
16 |
34 |
110,0 |
128,0 |
3,0 |
18 |
M16 |
4 |
2,750 |
| 100 |
114,3 |
R 4" |
170 |
210 |
16 |
40 |
130,0 |
148,0 |
3,0 |
18 |
M16 |
4 |
3,010 |
| 125 |
139,7 |
R 5" |
200 |
240 |
18 |
44 |
160,0 |
178,0 |
3,0 |
18 |
M16 |
8 |
4,300 |
| 150 |
168,3 |
R 6" |
225 |
265 |
18 |
44 |
185,0 |
202,0 |
3,0 |
18 |
M16 |
8 |
4,630 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 13 / DN100 / PN6 / P245GH / HEAT NUMBER |
| EN 1092-1 TYPE 13 PN16 THREADED FLANGE |
| Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
Thread |
k |
D |
b |
h1 |
d3 |
d4 |
f |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
21,3 |
R 1/2" |
65 |
95 |
16 |
22 |
35,0 |
45,0 |
2,0 |
14 |
M12 |
4 |
0,722 |
| 20 |
26,9 |
R 3/4" |
75 |
105 |
18 |
26 |
45,0 |
58,0 |
2,0 |
14 |
M12 |
4 |
1,040 |
| 25 |
33,7 |
R 1" |
85 |
115 |
18 |
28 |
52,0 |
68,0 |
2,0 |
14 |
M12 |
4 |
1,250 |
| 32 |
42,4 |
R 1-1/4" |
100 |
140 |
18 |
30 |
60,0 |
78,0 |
2,0 |
18 |
M16 |
4 |
1,810 |
| 40 |
48,3 |
R 1-1/2" |
110 |
150 |
18 |
32 |
70,0 |
88,0 |
3,0 |
18 |
M16 |
4 |
2,060 |
| 50 |
60,3 |
R 2" |
125 |
165 |
18 |
28 |
84,0 |
102,0 |
3,0 |
18 |
M16 |
4 |
2,390 |
| 65 |
76,1 |
R 2-1/2" |
145 |
185 |
18 |
32 |
104,0 |
122,0 |
3,0 |
18 |
M16 |
4 |
2,970 |
| 80 |
88,9 |
R 3" |
160 |
200 |
20 |
34 |
118,0 |
138,0 |
3,0 |
18 |
M16 |
8 |
3,780 |
| 100 |
114,3 |
R 4" |
180 |
220 |
20 |
40 |
140,0 |
158,0 |
3,0 |
18 |
M16 |
8 |
4,380 |
| 125 |
139,7 |
R 5" |
210 |
250 |
22 |
44 |
168,0 |
188,0 |
3,0 |
18 |
M16 |
8 |
6,070 |
| 150 |
168,3 |
R 6" |
240 |
285 |
22 |
44 |
195,0 |
212,0 |
3,0 |
22 |
M20 |
8 |
7,240 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
2. FLANGE MARKING: LOGO EN 1092-1 / 13 / DN100 / PN16 / P245GH / HEAT NUMBER |
