Home / Products / Flanges / AWWA C207 Class D Slip On Hub Flange
Our traded range of industrial flanges are sourced from some of the renowned and trusted vendors. Available in various grades, our stainless steel flanges are priced competitively.
AWWA C207 Class D Slip On Hub Flange
| standard No. |
size |
PN |
Type |
Material |
| AWWA C207 |
4"--144" |
Class B,D,E,F T/1 |
PL |
A105,A181 A36,
A516Gr.60,65,70 |

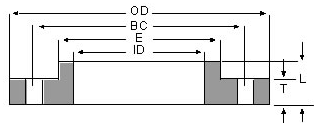

Dimensions & Approx Masses of C207 Class D Hub Flange (175-150 psi*)
Nom Size |
|
|
|
|
Drilling |
|
OD |
Thickness |
Overall Thickness |
Dia at Base |
Bore |
Bolt Circle |
Hole Dia |
No. Holes |
Weight |
A |
T |
|
E |
B |
C |
|
|
|
4 |
9.00 |
0.500 |
0.875 |
5.312 |
4.57 |
7.50 |
0.750 |
8 |
7 |
5 |
10.00 |
0.562 |
1.250 |
6.312 |
5.66 |
8.50 |
0.875 |
8 |
9 |
6 |
11.00 |
0.562 |
1.250 |
7.562 |
6.72 |
9.50 |
0.875 |
8 |
11 |
8 |
13.50 |
0.562 |
1.250 |
9.688 |
8.72 |
11.75 |
0.875 |
8 |
15 |
10 |
16.00 |
0.688 |
1.250 |
12.000 |
10.88 |
14.25 |
1.000 |
12 |
22 |
12 |
19.00 |
0.688 |
1.250 |
14.375 |
12.88 |
17.00 |
1.000 |
12 |
33 |
14 |
21.00 |
0.750 |
1.250 |
15.750 |
14.19 |
18.75 |
1.125 |
12 |
43 |
16 |
23.50 |
0.750 |
1.250 |
18.000 |
16.19 |
21.25 |
1.125 |
16 |
52 |
18 |
25.00 |
0.750 |
1.250 |
19.875 |
18.19 |
22.75 |
1.250 |
16 |
52 |
20 |
27.50 |
0.750 |
1.250 |
22.000 |
20.19 |
25.00 |
1.250 |
20 |
61 |
22 |
29.50 |
1.000 |
1.750 |
24.250 |
22.19 |
27.25 |
1.375 |
20 |
92 |
24 |
32.00 |
1.000 |
1.750 |
26.125 |
24.19 |
29.50 |
1.375 |
20 |
105 |
26 |
34.25 |
1.000 |
1.750 |
28.500 |
26.19 |
31.75 |
1.375 |
24 |
119 |
28 |
36.50 |
1.000 |
1.750 |
30.500 |
28.19 |
34.00 |
1.375 |
28 |
130 |
30 |
38.75 |
1.000 |
1.750 |
32.500 |
30.19 |
36.00 |
1.375 |
28 |
144 |
32 |
41.75 |
1.125 |
1.750 |
34.750 |
32.19 |
38.50 |
1.625 |
28 |
182 |
34 |
43.75 |
1.125 |
1.750 |
36.750 |
34.19 |
40.50 |
1.625 |
32 |
191 |
36 |
46.00 |
1.125 |
1.750 |
38.750 |
36.19 |
42.75 |
1.625 |
32 |
207 |
38 |
48.75 |
1.125 |
1.750 |
40.750 |
38.19 |
45.25 |
1.625 |
32 |
237 |
40 |
50.75 |
1.125 |
1.750 |
43.000 |
40.19 |
47.25 |
1.625 |
36 |
249 |
42 |
53.00 |
1.250 |
1.750 |
45.000 |
42.19 |
49.50 |
1.625 |
36 |
287 |
44 |
55.25 |
1.250 |
2.250 |
47.000 |
44.19 |
51.75 |
1.625 |
40 |
334 |
46 |
57.25 |
1.250 |
2.250 |
49.000 |
46.19 |
53.75 |
1.625 |
40 |
348 |
48 |
59.50 |
1.375 |
2.500 |
51.000 |
48.19 |
56.00 |
1.625 |
44 |
407 |
50 |
61.75 |
1.375 |
2.500 |
53.000 |
50.19 |
58.25 |
1.875 |
44 |
421 |
52 |
64.00 |
1.375 |
2.500 |
55.000 |
52.19 |
60.50 |
1.875 |
44 |
448 |
54 |
66.25 |
1.375 |
2.500 |
57.000 |
54.19 |
62.75 |
1.875 |
44 |
475 |
60 |
73.00 |
1.500 |
2.750 |
63.000 |
60.19 |
69.25 |
1.875 |
52 |
605 |
66 |
80.00 |
1.500 |
2.750 |
69.000 |
66.19 |
76.00 |
1.875 |
52 |
718 |
72 |
86.50 |
1.500 |
2.750 |
75.000 |
72.19 |
82.50 |
1.875 |
60 |
803 |
78 |
93.00 |
1.750 |
3.000 |
81.250 |
78.19 |
89.00 |
2.125 |
64 |
1010 |
84 |
99.75 |
1.750 |
3.000 |
87.500 |
84.19 |
95.50 |
2.125 |
64 |
1160 |
90 |
106.50 |
2.000 |
3.250 |
93.750 |
90.19 |
102.00 |
2.438 |
68 |
1430 |
96 |
113.25 |
2.000 |
3.250 |
100.000 |
96.19 |
108.50 |
2.438 |
68 |
1618 |
Dimensions are in inches. Weights are in pounds.
Note: Hub flanges are to be used on pipe that has an OD equal to the nominal pipe size in the first column. *Pressure rating at atmospheric temperature: sizes 4-12 in. inclusive, 175 psi; sizes larger than 12 in., 150 psi. These flanges have the same OD and drilling as ANSI/ASME B16.1 class 125 cast-iron flanges. In sizes 24in. and smaller, they also match ANSI/ASME B16.5 150-psi standard for steel flanges.
