Our range of Carbon Steel Elbolet extensively used in several industry applications. These Carbon Steel Elbolet are sturdy in construction and are offered to our clients in standard and customized specifications. Provided with hot dip galvanization and electro polishing services.

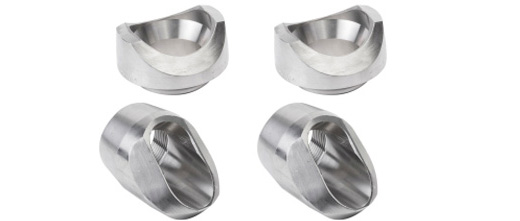

Elbolet

Specifications

Elbolets for 90° long radius elbows
Elbolets 2“ and smaller fit all elbow sizes. Larger branch sizes are individually contoured to match elbow diameter.

Special know-how of special materials
Elbolets can be ordered for two pressure stages (3000 lbs and 6000 lbs). Upon request, we also supply them of special materials.

Elbolet : 1/2” to 24” in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

Stainless Steel Elbolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Duplex Steel Elbolet
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Elbolet
Standard : ASTMA 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70

Alloy Steel Elbolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91

Copper Nickel Elbolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640

Nickel Alloy Elbolet Standard :

• ASTM / ASME SB 564 / 160 / 472
• Nickel 200 Elbolet – UNS N02200
• Nickel 201 Elbolet – UNS N02201
• Monel 400 Elbolet – UNS N04400
• Monel K500 Elbolet – UNS N05500
• Inconel K600 Elbolet – UNS N06600
• Inconel 601 Elbolet – UNS N06601
• Inconel 625 Elbolet – UNS N06625
• Inconel 800 Elbolet – UNS N08800
• Inconel 800H Elbolet – UNS N08810
• Inconel 825 Elbolet – UNS N08825
• Hastelloy C276 Elbolet – UNS N10276
• Alloy 20 Elbolet – UNS N08020

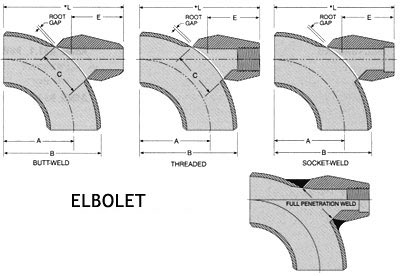

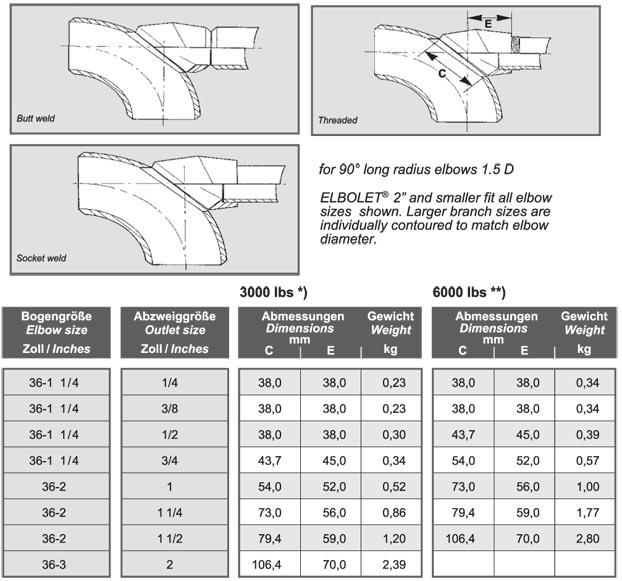

Elbolet Dimensions

Nominal Elbow Size Inches	Outlet Size Inches	Dimensions
		CL 3000 Threaded & Socket Weld Std. & XS Butt-Weld		CL 6000 Threaded & Socket Socket-Weld Sch. 160 & XXS Butt-Weld
		C	E	C	E
36 - 3/4	1/4	1 1/2	1 19/32	1 1/2	1 19/32
36 - 3/4	3/8	1 1/2	1 19/32	1 1/2	1 19/32
36 - 3/4	1/2	1 1/2	1 19/32	1 23/32	1 7/8
36 - 1	3/4	1 23/32	1 7/8	2 1/4	2 1/4
36 - 2	1	2 1/4	2 1/4	2 7/8	2 1/2
36 - 2	1 1/4	2 7/8	2 1/2	3 1/8	2 11/16
36 - 2	1 1/2	3 1/8	2 11/16	4 3/16	3 1/4
36 - 3	2	4 3/16	3 1/4
	**2 1/2	4 3/16	3 1/4
	**3	5 1/16	3 7/8
Order to Specific	**4	6 5/8	4 13/16
Elbow Sizes	**6	9 3/8	6 1/2	**	**
	**8	13 5/16	8 1/16
	**10	17 1/32	10 3/8
	**12	19 5/8	11 1/8
