With the customer focused approach and rich industrial experience, we offer Insert Weldolet with several precision-specifications as required by our clients. These products are manufactured with mixture of high quality carbon steel, alloy steel, stainless steel. These products are user friendly and are used in tightening screws and bolts. This product is used at mechanical industries. This product is available with us at a diminutive price.

Insert Weldolet

Stainless Steel Weldolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Duplex Steel Weldolet
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Weldolet
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062

Alloy Steel  Weldolet
Standard : ASTM / ASME A/SA 182 / A 387
Grade : F5, F9, F11, F12, F22, F91.

Nickel Alloy Weldolet
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

Copper Alloy Weldolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200

DUPLEX STEEL INSERT WELDOLET

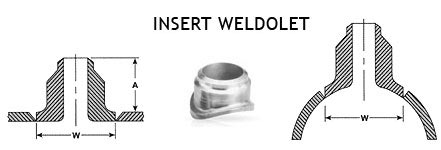

Dimensions

Outlet Size	A' Dimensions (Height above run pipe)
	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14	16	18	20	24
Std Wt Run Pipe	1.50	1.50	1.62	1.75	2.00	2.25	2.38	2.75	3.06	3.38	3.50	3.75	3.81	4	4.56
XS Run Pipe	1.50	1.50	1.62	1.75	2.00	2.25	3.06	3.87	3.69	4.06	3.81	4.19	4.38	4.69	5.50
.500" to .750" Thick Run Pipe	-	-	-	2.88	3.31	3.75	4.12	4.18	4.25	4.37	4.50	4.69	5.13	5.62	6.50
.750" to 1.00" Thick Run Pipe	-	-	-	3.22	3.38	3.75	4.34	4.62	4.84	5.10	5.25	5.88	6.50	6.75	7.62
1.00" to 1.25" Thick Run Pipe	-	-	-	3.38	3.50	4.00	4.50	4.88	5.00	5.38	5.50	6.00	6.50	7.00	8.00
1.25" to 1.50" Thick Run Pipe	-	-	-	3.62	3.87	4.25	4.69	5.16	5.31	5.68	5.81	6.44	6.50	7.56	8.72
Outlet Size	*'W' Dimensions (Max. O.D. of fitting - Max. size of hole)
	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14	16	18	20	24
Std Wt Run Pipe	3.50	4.25	4.88	5.69	7.00	8.06	9.71	11.71	14.00	16.32	17.56	19.75	22.00	24.00	29.00
XS Run Pipe	3.56	4.38	5.00	5.75	7.12	8.25	10.44	13.44	14.25	16.56	18.00	20.00	22.44	25.00	30.32
