We hold industry expertise for Manufacturing and Supplying a superior array of Carbon Steel Sweepolet. Our complete array of Carbon Steel Sweepolet is fabricated precisely in compliance with quality standards. These products are demanded for their superlative quality and attributes such as durability, sturdiness, dimensional accuracy, and corrosion & abrasion resistance.

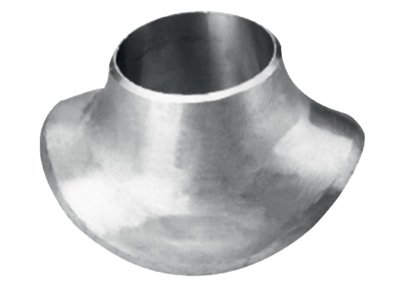

Sweepolet
Sweepolet Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
MATERIALS :
Stainless Steel -Sweepolet – SS -Sweepolet
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel -Sweepolet
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Alloy Steel -Sweepolet – AS -Sweepolet
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Carbon Steel -Sweepolet – CS -Sweepolet
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Low Temperature Carbon Steel -Sweepolet – LTCS -Sweepolet
A350 LF3/A350 LF2
Nickel Alloy -Sweepolet :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 -Sweepolet)
UNS 2200 (NICKEL 200 -Sweepolet)
UNS 2201 (NICKEL 201 -Sweepolet)
UNS 4400 (MONEL 400 Sweeepolet)
UNS 8020 (ALLOY 20 Swepolet)
UNS 8825 INCONEL 825 -Sweepolet)
UNS 6600 (INCONEL 600 -Sweepolet)
UNS 6601 (INCONEL 601 -Sweepolet)
UNS 6625 (INCONEL 625 -Sweepolet)
Copper Alloy -Sweepolet
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel -Sweepolet
C 71500 (CU -NI- 70/30) – Copper Nickel -Sweepolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish

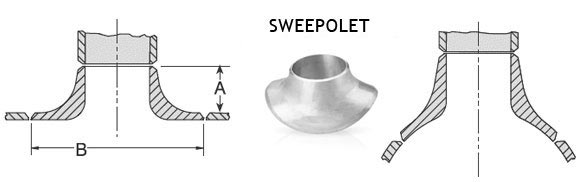

Dimensions
Run Size |
Outlet Size
Inches |
Dimensions |
*A |
B |
6 to 36 |
1 1/4 |
1 1/4 |
4 |
6 to 36 |
1 1/2 |
1 3/4 |
5 1/2 |
6 to 36 |
2 |
1 1/2 |
5 1/2 |
6 to 36 |
3 |
1 21/32 |
7 |
6 to 36 |
4 |
2 1/32 |
8 3/4 |
10 to 36 |
6 |
2 11/16 |
13 |
12 to 36 |
8 |
3 |
15 |
16 to 36 |
10 |
3 1/8 |
18 1/2 |
16 to 36 |
12 |
3 5/16 |
20 1/2 |
20 to 36 |
14 |
3 5/8 |
24 |
24 to 36 |
16 |
3 3/4 |
28 |
24 to 36 |
18 |
4 5/8 |
31 |
24 to 36 |
20 |
5 1/8 |
33 |
30 to 36 |
24 |
5 5/8 |
38 |
