With wide exposure and enormous experience we Hexion Steel & Engineering deal with manufacturing of a comprehensive range of Alloy 20 Nipolet. These are highly durable and we use extremely premium quality raw material for fabricating it. These are manufacture with accuracy in size, dimension, thickness and weight to achieve best quality with complete customer satisfaction. Our collection of these Alloy 20 Nipolet is recognized for trouble free and flawless performance, easy and simple installation and most importantly sturdiness with excellent reliability.

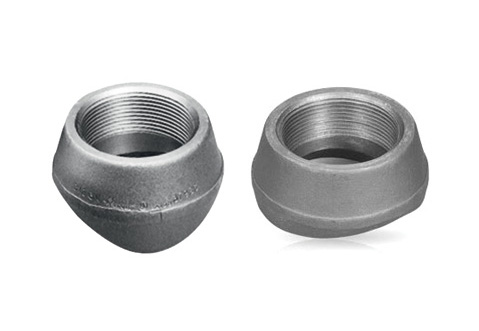

ASTM B366 Alloy 20 Nipolet
Specifications
| Standards |
Designation |
| ASTM |
B 366 |
| ASME |
SB 366 |
| Standard |
Alloy 20 |
| UNS |
N08020 |
| Werkstoff Nr. |
2.4660 |
ASTM B366 Alloy 20 Nipolet Inventory Stock at factory rate:-
Dimensions
Chemical Composition
|
Alloy 20 |
| Ni |
32 – 38 |
| Fe |
Bal |
| Cr |
19 – 21 |
| Cu |
3 – 4 |
| Mo |
2 – 3 |
| Nb |
0.1 – 0.3 |
| C |
0.02 max |
| Mn |
1 – 2 |
| P |
0.02 max |
| S |
0.005 max |
| Si |
0.7 max |
Mechanical & Physical Properties – Alloy 20
| Density |
8.1 g/cm3 |
| Melting Point |
1443 °C (2430 °F) |
| Tensile Strength |
Psi – 80000 , MPa – 551 |
| Yield Strength (0.2%Offset) |
Psi – 35000 , MPa – 241 |
| Elongation |
30 % |
AVAILABILITY
Seamless Pipe 1/2" - 8"
Weld Pipe 1/2" - 12"
Butt-Weld Fittings 1/2" - 12"
Flanges 1/2" - 12"
Pressure Fittings 1/2" - 2"
150# Fittings 1/4" - 2"
Tubing 1/4", 3/8", 1/2"
Valves 1/2" - 12"
Bar 1" - 8"
SPECIFICATIONS |
ASTM B729, ASTM B464, ASTM B366, ASTM B473, ASTM B462 |
ASME SB729, ASME SB464, ASME SB366, ASME SB473, ASME SB462 |
DESIGN FEATURES
- Superior resistance to stress-corrosion cracking in boiling 20 to 40% sulfuric acid.
- Excellent general corrosion resistance to sulfuric acid.
- Excellent resistance to chloride stress corrosion cracking.
- Excellent mechanical properties and fabricability.
- Minimal carbide precipitation during welding.
TENSILE REQUIREMENTS
Tensile Strength (KSI) 80
Yield Strength (KSI) 35KSI can be converted to MPA (Megapascals) by multiplying by 6.895
