We are regular suppliers from China for ASME B16.9 Butt weld Equal Tee
|
|
Home / Products / Butt-Welding Fittings / ASME B16.9 Butt weld Equal Tee
Our company is highly acclaimed in offering a wide range of Butt weld Stub End. We take into account the prevailing trends and parameters set by the industry and offer suitable range of Butt weld Stub End. Our highly experienced and professional workers make use of sophisticated tools and machinery to fabricate this Butt weld Stub End.

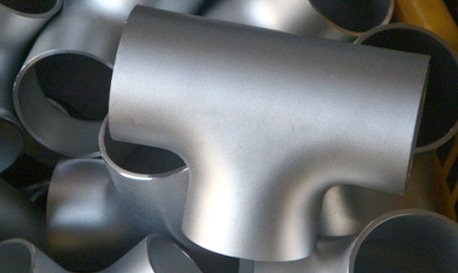

ASME B16.9 Butt weld Equal Tee
| Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: |
Sch 5 TO Sch XXS. |
| Variations: |
Welded & Seamless |
| Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
| Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: |
Butt Weld (BW) |
| Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: |
Outside diameter : 1/2" à 24"
(21,34 - 609,5 mm)
Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS
(1,65 - 59.51 mm) |
Dimensions
| Nominal Pipe Size |
Outside diameter
at bevel |
Center-to-End |
| Run (C) |
Outlet(M) |
| 1/2" |
21.3 |
25 |
25 |
| 3/4" |
26.7 |
29 |
29 |
| 1" |
33.4 |
38 |
38 |
| 1 1/4" |
42.2 |
48 |
48 |
| 1 1/2" |
48.3 |
57 |
57 |
| 2" |
60.3 |
64 |
64 |
| 2 1/2" |
73.0 |
76 |
76 |
| 3" |
88.9 |
86 |
86 |
| 3 1/2" |
101.6 |
95 |
95 |
| 4" |
114.3 |
105 |
105 |
| 5" |
141.3 |
124 |
124 |
| 6" |
168.3 |
143 |
143 |
| 8" |
219.1 |
178 |
178 |
| 10" |
273.0 |
216 |
216 |
| 12" |
323.8 |
254 |
254 |
| 14" |
355.6 |
279 |
279 |
| 16" |
406.4 |
305 |
305 |
| 18" |
457.0 |
343 |
343 |
| 20" |
508.0 |
381 |
381 |
| 22" |
559.0 |
419 |
419 |
| 24" |
610.0 |
432 |
432 |
The dimensions are in millimeters
Source : ASME B16.9 - 2007
