We are regular suppliers from China for ANSI/ASME B16.9 Welded Elbows
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Welded Elbows
Our clients can avail from us an advanced range of ANSI B16.9 ELBOWS that are available in different dimensions. These ANSI B16.9 ELBOWS find extensive application in diverse industries and have gained huge appreciation for their excellent features. The use high-grade raw material and latest technology machines in the manufacturing process. We offer these ANSI B16.9 ELBOWS in several sizes, thicknesses and other specifications to our respected customers.

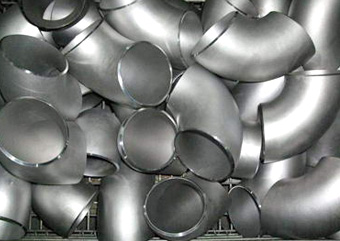

ANSI/ASME B16.9 Welded Elbows
| Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: |
Sch 5 TO Sch XXS. |
| Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
| Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: |
Butt Weld (BW) |
| Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |

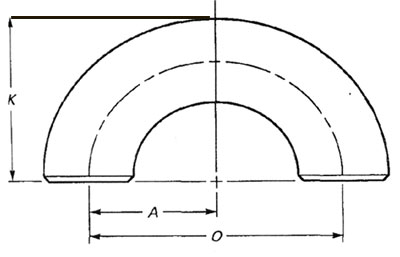

DIMENSIONS OF SHORT RADIUS 180 deg RETURNS
| Nominal Pipe Size (NPS) |
DN |
Outside Diameter at Bevel |
Center- to-Center O |
Back-to-Face K |
| 1 |
25 |
33.4 |
51 |
41 |
| 1-1/4 |
32 |
42.2 |
64 |
52 |
| 1-1/2 |
404 |
8.3 |
76 |
62 |
| 2 |
50 |
60.3 |
102 |
81 |
| 2-1/2 |
65 |
73.0 |
127 |
100 |
| 3 |
80 |
88.9 |
152 |
121 |
| 3-1/2 |
90 |
101.6 |
178 |
140 |
| 4 |
100 |
114.3 |
203 |
159 |
| 5 |
125 |
141.3 |
254 |
197 |
| 6 |
150 |
168.3 |
305 |
237 |
| 8 |
200 |
219.1 |
406 |
313 |
| 10 |
250 |
273.0 |
508 |
391 |
| 12 |
300 |
323.8 |
610 |
467 |
| 14 |
350 |
355.6 |
711 |
533 |
| 16 |
400 |
406.4 |
813 |
610 |
| 18 |
450 |
457 |
914 |
686 |
| 20 |
500 |
508 |
1016 |
762 |
| 22 |
550 |
559 |
1118 |
838 |
| 24 |
600 |
610 |
1219 |
914 |
NOTES:
(a). All dimensions are in millimeters.
(b). Dimension A is equal to one-half of dimension O.
