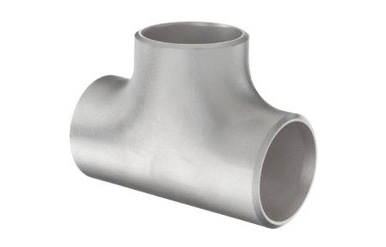

ASME B16.9 Butt weld Reducing Tee
| Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: |
Sch 5 TO Sch XXS. |
| Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
| Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: |
Butt Weld (BW) |
| Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: |
Outside diameter : 1/2" à 24"
(21,34 - 609,5 mm)
Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS
(1,65 - 59.51 mm)
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |

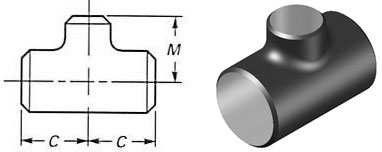

Dimensions
| Nominal Pipe Size |
Outside diameter
at bevel |
Center-to-End |
| Run |
Outlet |
Run |
Outlet |
Run (C) |
Outlet (M) |
| 1/2" |
1/4"
3/8" |
21.3 |
13.7
17.3 |
25 |
25 |
| 3/4" |
3/8"
1/2" |
26.7 |
17.3
21.3 |
29 |
29 |
| 1" |
1/2"
3/4" |
33.4 |
21.3
26.7 |
38 |
38 |
| 1 1/4" |
1/2"
3/4"
1" |
42.2 |
21.3
26.7
33.4 |
48 |
48 |
| 1 1/2" |
1/2"
3/4"
1"
1 1/4" |
48.3 |
21.3
26.7
33.4
42.2 |
57 |
57 |
| 2" |
3/4"
1"
1 1/4"
1 1/2" |
60.3 |
26.7
33.4
42.2
48.3 |
64 |
44
51
57
60 |
| 2 1/2" |
1"
1 1/4"
1 1/2"
2" |
73.0 |
33.4
42.2
48.3
60.3 |
76 |
57
64
67
70 |
| 3" |
1 1/4"
1 1/2"
2"
2 1/2" |
88.9 |
42.2
48.3
60.3
73.0 |
86 |
70
73
76
83 |
| 3 1/2" |
1 1/2"
2"
2 1/2"
3" |
101.6 |
48.3
60.3
73.0
88.9 |
95 |
79
83
89
92 |
| 4" |
1 1/2"
2"
2 1/2"
3"
3 1/2" |
114.3 |
48.3
60.3
73.0
88.9
101.6 |
105 |
86
89
95
98
102 |
| 5" |
2"
2 1/2"
3"
3 1/2"
4" |
141.3 |
60.3
73.0
88.9
101.6
114.3 |
124 |
105
108
111
114
117 |
| 6" |
2 1/2"
3"
3 1/2"
4"
5 |
168.3 |
73.0
88.9
101.6
114.3
141.3 |
143 |
121
124
127
130
137 |
| 8" |
3 1/2"
4"
5"
6" |
219.1 |
101.6
114.3
141.3
168.3 |
178 |
152
156
162
168 |
| 10" |
4"
5"
6"
8" |
273.0 |
114.3
141.3
168.3
219.1 |
216 |
184
191
194
203 |
| 12" |
5"
6"
8"
10" |
323.8 |
141.3
168.3
219.1
273.0 |
254 |
216
219
229
241 |
| 14" |
6"
8"
10"
12" |
355.6 |
168.3
219.1
273.0
323.8 |
279 |
238
248
257
270 |
| 16" |
6"
8"
10"
12"
14" |
406.4 |
168.3
219.1
273.0
323.8
355.6 |
305 |
264
273
283
295
305 |
| 18" |
8"
10"
12"
14"
16" |
457.0 |
219.1
273.0
323.8
355.6
406.4 |
343 |
298
308
321
330
330 |
| 20" |
8"
10"
12"
14"
16"
18" |
508.0 |
219.1
273.0
323.8
355.6
406.4
457.0 |
381 |
324
333
346
356
356
368 |
| 22" |
10"
12"
14"
16"
18"
20" |
559.0 |
273.0
323.8
355.6
406.4
457.0
508.0 |
419 |
359
371
381
381
394
406 |
| 24" |
10"
12"
14"
16"
18"
20"
22" |
610.0 |
273.0
323.8
355.6
406.4
457.0
508.0
559.0 |
432 |
384
397
406
406
419
432
432 |
The dimensions are in millimeters
Source : ASME B16.9 - 2007
