Inconel 601 (UNS: N06601, Werkstoff Nr.: 2.4851)
Our traded products include nickel alloy butt weld fittings that are extensively used in diverse industries. These butt weld fittings conform to rds. Various grades of nickel alloy butt weld pipe fittings are.

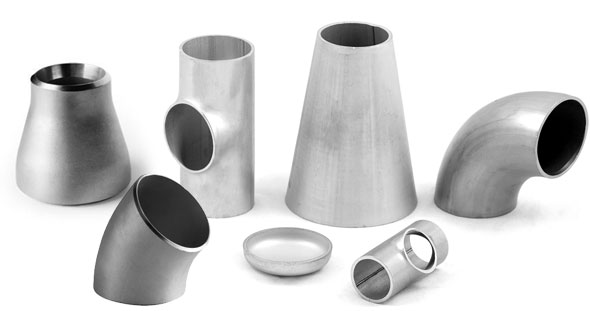

ASTM B366 Inconel 601 Butt welding Fittings
Specifications
| Standards |
Designation |
| ASTM |
B 366 |
| ASME |
SB 366 |
| UNS |
N06601 |
| Werkstoff Nr. |
2.4851 |
Dimensions
Click on below for dimensions & size:
Inconel 601 is a nickel-chromium-iron alloy. Inconel 601 is a general purpose engineering material that require resistance to heat & corrosion. Inconel 601 has outstanding resistance to high temperature oxidation.
Chemical Composition
|
Inconel 601 |
| Ni |
58.0 – 63.0 |
| Cr |
21.0 – 25.0 |
| Fe |
Balance |
| Al |
1.0 – 1.7 |
| C |
0.10 max |
| Mn |
1.0 max |
| S |
0.015 max |
| Si |
0.5 max |
| Cu |
1.0 max |
Mechanical & Physical Properties – Inconel 601
| Density |
8.1 g/cm3 |
| Melting Point |
1411 °C (2571 °F) |
| Tensile Strength |
Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) |
Psi – 30,000 , MPa – 205 |
| Elongation |
30 % |
Subcategory: Metal; Nickel Base; Superalloy
Key Words: Inconel 601, Nickel-Chromium Alloy; Werkstoff Nr. 2.4851, UNS N06601; ASME Boiler Code Section VIII; AMS 5715, AMS 5870; ASTM B166, ASTM B167, ASTM B168; DIN 17742, 17750 - 17752
Component Wt. %
Al 1 - 1.7
C Max 0.1
Cr 21 - 25 |
Component Wt. %
Cu Max 1
Fe 13
Mn Max 1
58 - 63 |
Component Wt. %
Ni
S Max 0.015
Si Max 0.5 |
| Standard product forms are round, flats, forging stock, pipe, tube, plate, sheet, strip, and wire. |
| Electrical Properties |
| Electrical Resistivity |
0.000119 ohm-cm |
0.000119 ohm-cm |
|
| Magnetic Permeability |
1.003 |
1.003 |
at 200 oersted (15.9 kA/m) |
| Curie Temperature |
Max -196 °C |
Max -321 °F |
|
| Thermal Properties |
| CTE, linear 20°C |
13.75 µm/m-°C |
7.64 µin/in-°F |
20-100°C |
| Heat Capacity |
0.448 J/g-°C |
0.107 BTU/lb-°F |
|
| Thermal Conductivity |
11.2 W/m-K |
77.7 BTU-in/hr-ft²-°F |
|
| Melting Point |
1360 - 1411 °C |
2480 - 2570 °F |
|
| Solidus |
1360 °C |
2480 °F |
|
| Liquidus |
1411 °C |
2570 °F |
|
